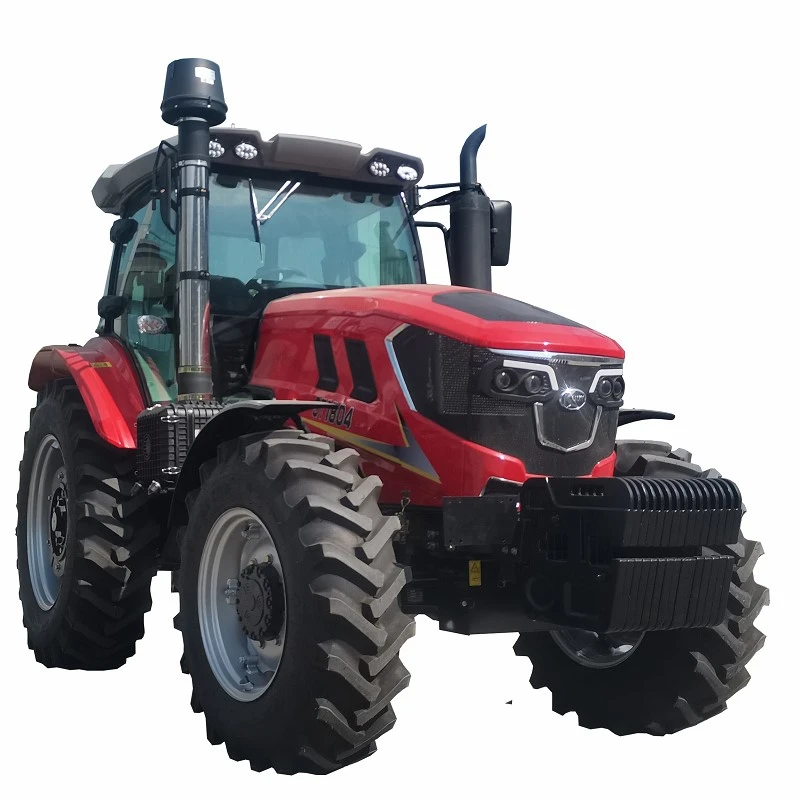

180hp Tractor

KASUN ST1804 Tractor

◆ Famous brand front drive axle has a high reliability;

◆ Matched with desert air filter(specially manufactured for Weichai),which has higher Reliability, more advanced and excellent performance in harsh environment and weight bearing operation.

◆ Tractor clutch has a high reliability, and the optional hydraulic power steering system can improve the manipulation;

◆ Optional electrically controlled lifter can achieve force adjustment, position adjustment, force-position control, and floating control;

◆ 16F+8R shift with a wide speed range can adapt to various operations. The use of shuttle shift structure makes the manipulation more convenient;

◆ 350-liter lower large fuel tank, a long operation time.

Model

ST1804

Engine type

Six cylinder intercooling turbo diesel engine

Rated power

132/180 kw/hp

Engine speed

2300 r/min

Clutch

Dry independent, double action

Gear shifts

16F+8R

PTO

760/850 or 540/1000 r/min

Hydraulic output

3 or 4 group

Overall dimension

5250*2330*3100 mm

Wheel base

2680 mm

Ground clearance

310 mm(The bottom of front axle)

Min. turning radius

4.9±0.3 m

Front tread

1750(1680,1750,1790,1830)mm (Adjustable in stage)

Rear tread

1850/1600-1900 mm (Stepless adjustable)
