90hp Plus Tractor
Utility Tractor
KASUN 90hp tractor, rated power 90hp, 4WD, 16F+8R, optional HUAFENG or YTO or WEICHAI engine, which is equipped with 16F+8R gear shifting and optional 16F+8R shuttle or crawling gear shift, It has further expanded the application scope of this machinery.
KASUN 90hp tractor, rated power 90hp, 4WD, 16F+8R, optional HUAFENG or YTO or WEICHAI engine, which is equipped with 16F+8R gear shifting and optional 16F+8R shuttle or crawling gear shift, It has further expanded the application scope of this machinery.
KASUN 90hp tractor is a farm tractor upgraded and improved version by KASUN machinery technical team and is suitable for households and small and medium-sized farms, wide range of applications and good adaptability.

Description

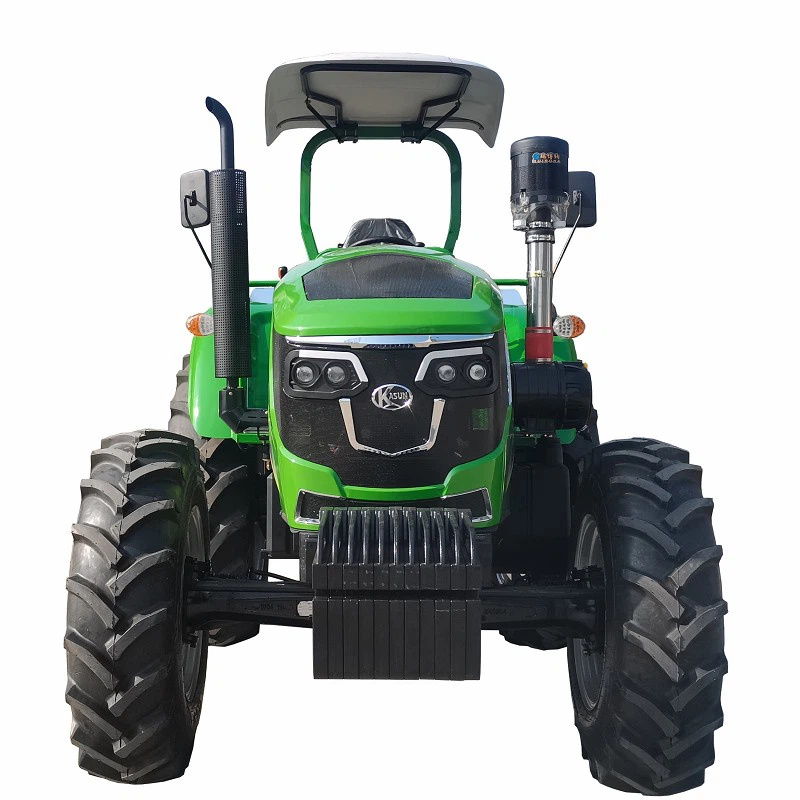

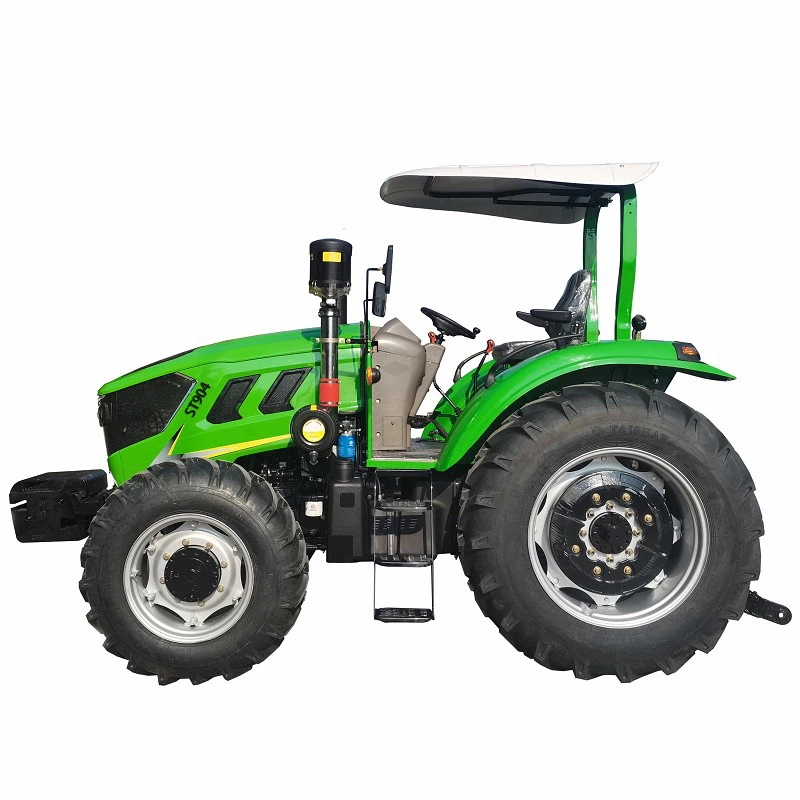

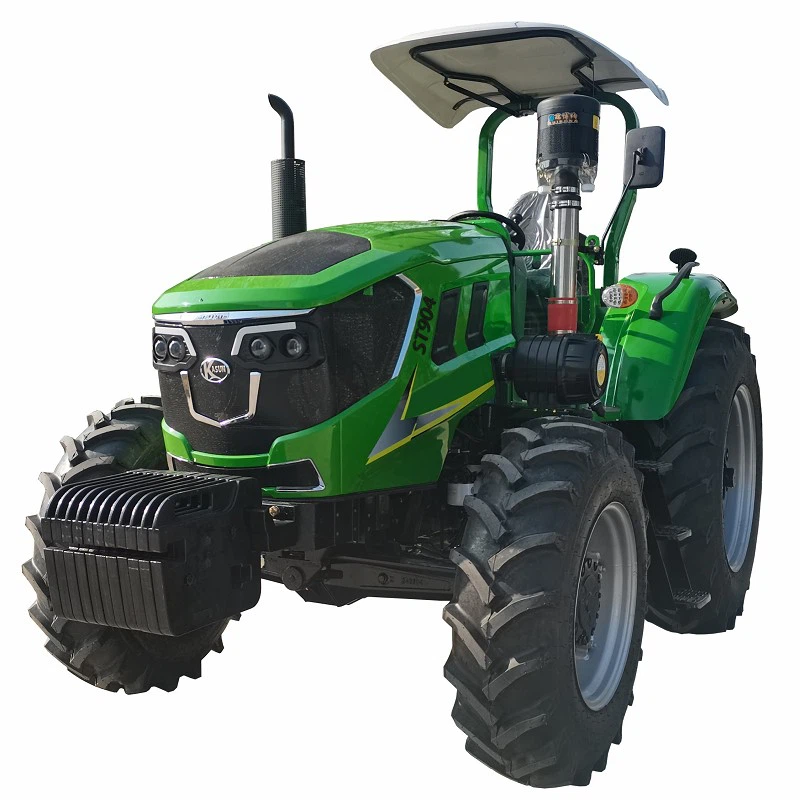

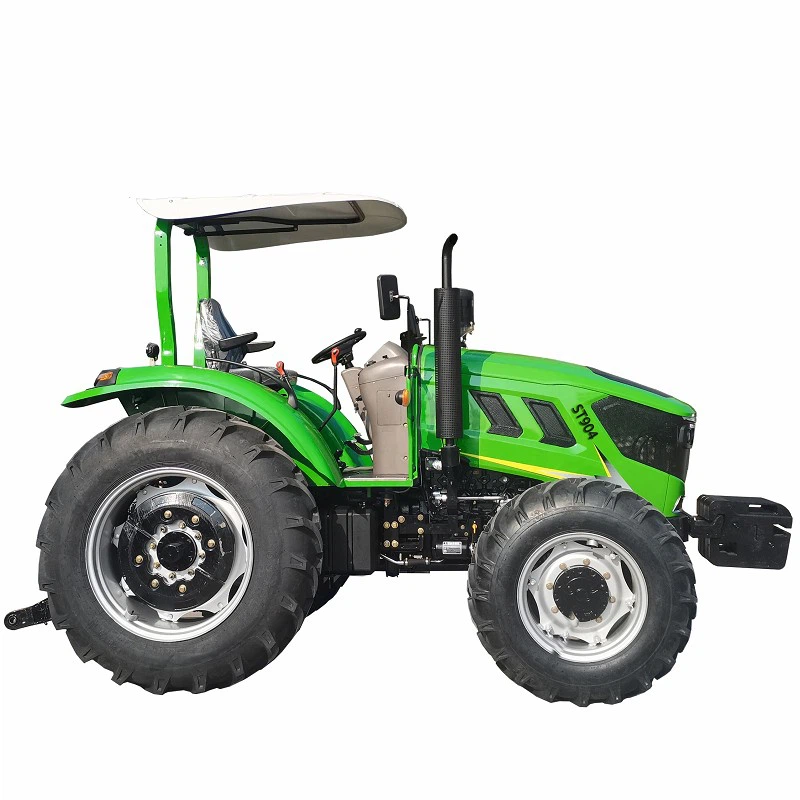

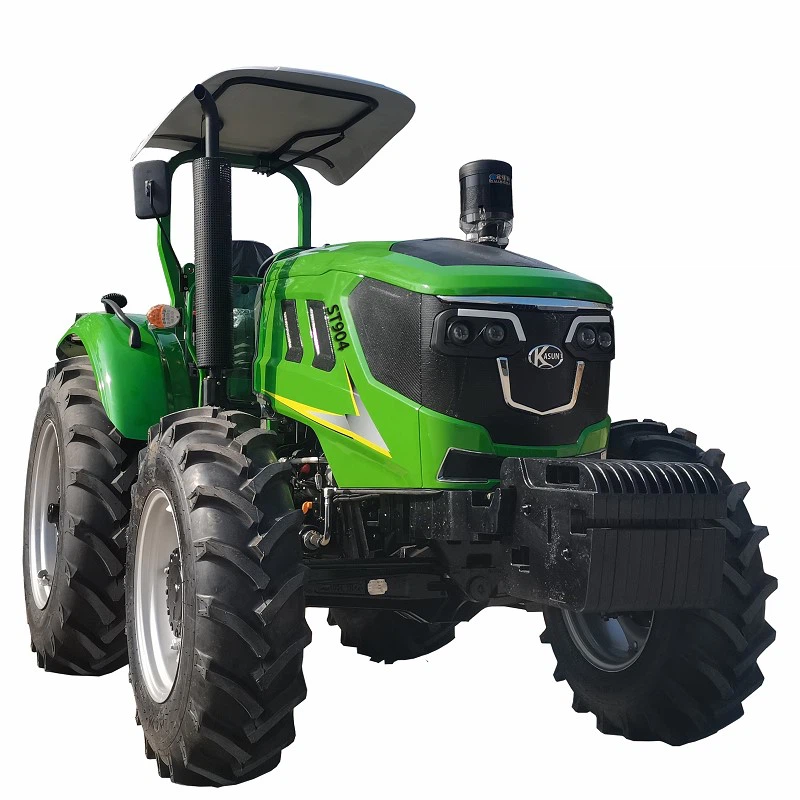

KASUN ST904 Wheel Tractor
◆ Matching the famous Stage II or Ⅲ engine which has larger torque, stronger power and lower fuel consumption
◆ Double-acting and independently-operated clutch with reliable performance, large torque reserve coefficient and high transmission capacity;
◆The latest 16F+8R gearbox with more comfortable gear shifting operation, reasonable speed distribution and efficient operation;
◆760/850r/min or 540/1000r/min optional for PTO speed and applicable to various machine deployment, axle heads of many optional specifications for quick gear shift.
Main technical specifications of KASUN ST904 Tractor as follow
|
Item |
Parameter |
|
Engine type |
Four-cylinder Intercooled turbocharged diesel engine |
|
Engine power (kw/hp) |
66.2/90 |
|
Engine speed (r/min) |
2200 |
|
Clutch mode |
Independent, double-action |
|
Gear shifts |
16F+8R |
|
Rear PTO (r/min) |
760/850 or 540/1000 |
|
Hydraulic output interface (set) |
2 or 3 or 4 |
|
Wheel base (mm) |
2330 |
|
Front wheel tread (mm) |
1700/1780/1880 Adjust in stages |
|
Rear wheel tread (mm) |
1608-1996 Stepless adjust |
|
Tyre (F/R) |
13.6-24/16.9-34 or 14.9-26/18.4-38 or Radial tire. |

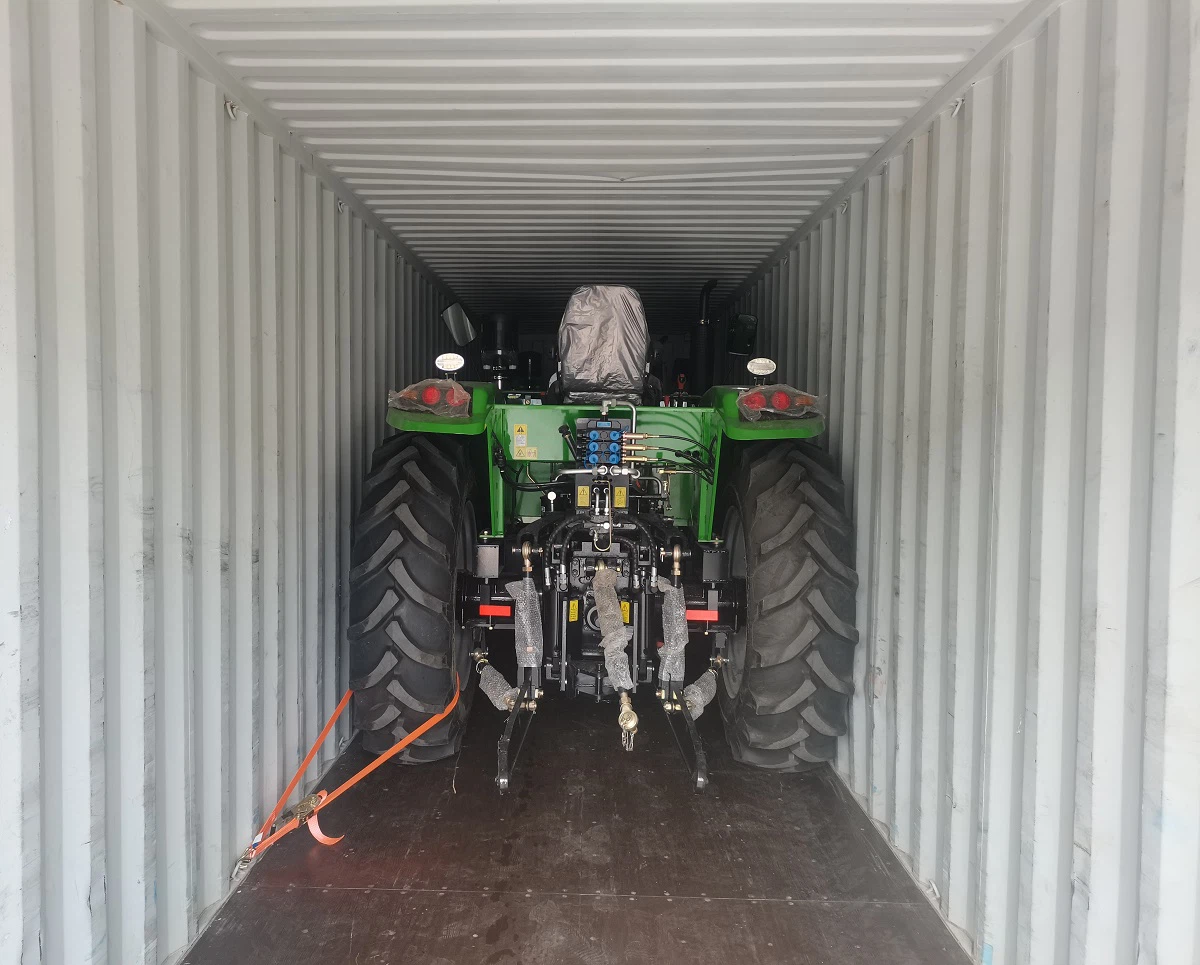

Container loading and loading quantity
This series of tractors if without cabin, it can be directly loaded into containers then after being fixed inside the container, it will be directly dispatched. It is simple and yet maintains the integrity of the tractor.
If with cabin, in order to reduce the height, the tractor rear wheels must be replaced with the iron wheels we have designed ourselves for loading container.
Quantities of loading per 40ft container: 3 units.
