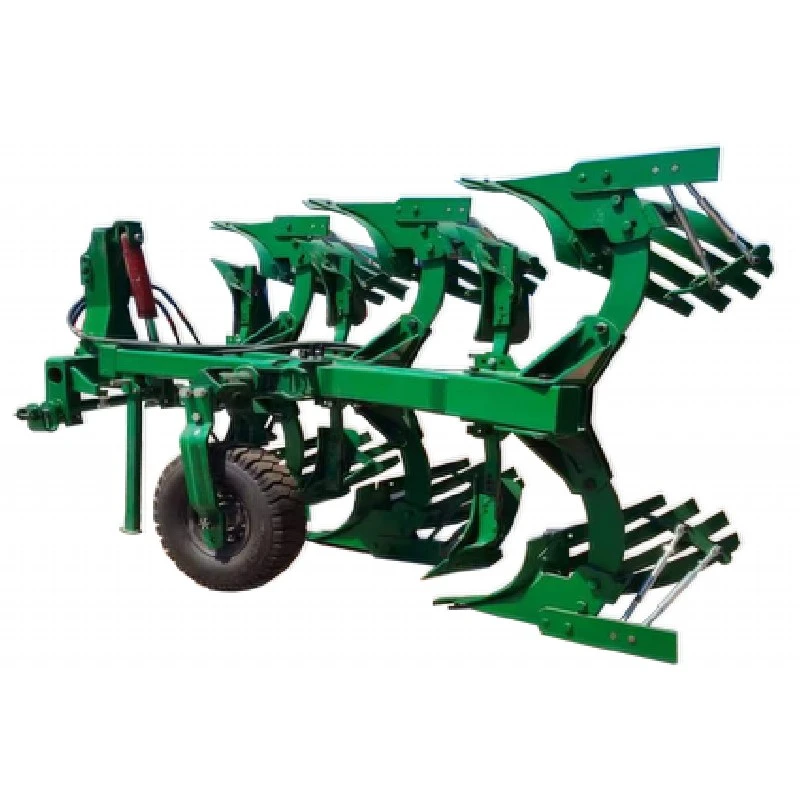

Hydraulic Reversible Plow

KASUN Hydraulic Reversible Plow 1LF series hydraulic reversible plow is a farming equipment that is used in conjunction with a tractor. It achieves the lifting and two-way flipping of the plow tools through the control of the hydraulic system by a dual-pump distributor. Its structure consists of components such as the suspension frame, tilting cylinder, plow frame, and plow body. The design is modular, facilitating maintenance. The vertical inclined plow tip can reduce the resistance when penetrating the soil, and the 45-degree angle between the plowshare and the towing direction enhances the soil-breaking effect.

KASUN Hydraulic Reversible Plow is suitable for farmlands in plains, hills, and mountainous areas, and demonstrates stability in high-intensity operations.

◆ Two-way operation has high efficiency, saving labor and time;

◆ Less idle stroke in the control of hydraulic system;

◆ The plowing tip is made of high-quality 65Mn material;

◆ Working depth can be adjustable;

◆ Plow head with common plow head and grids plow head two type.

The Hydraulic Reversible Plow is composed of a suspension frame, tilting cylinder, check valve mechanism and plow body, etc. The plow frame is vertically tilted by the extension and retraction of the piston rod of the cylinder, enabling the alternate operation of the forward and reverse plows. The ground wheel mechanism uses a screw to adjust the plowing depth, forming a "one wheel for two purposes" mechanism.
